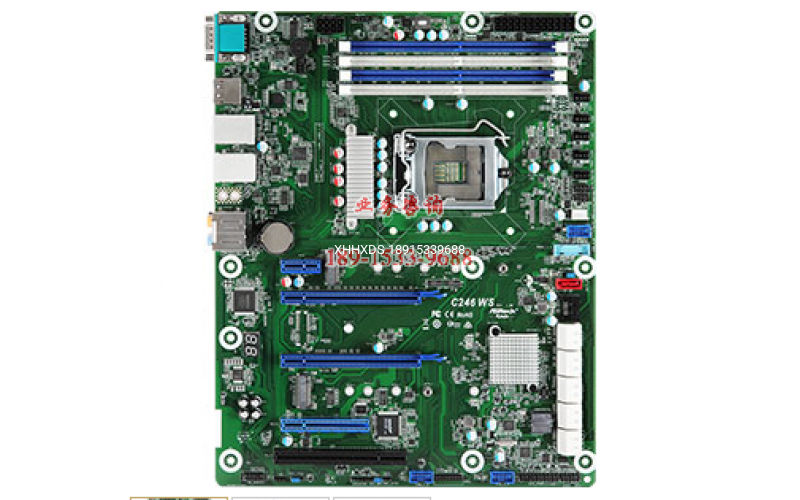

Supports Intel? Xeon? E-2100/E-2200 Series Processors
4 DIMM slots, supports Dual Channel DDR4 ECC/non-ECC UDIMM
1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCIe3.0 x1, 1 PCI
Support 3 M.2
Up to 12 SATA 6Gb/s
1 RJ45 (1GbE) by Intel? i210, 1 RJ45 (1GbE) by Intel? i219LM
5+1 Audio Jack, 1 HDMI, 1 Display port, 1 D-sub
规格
| 物理信息 | |
| 型式 | ATX |
| 尺寸 | 12”x 9.6” (305 mm x244 mm) |
| 处理器系统 | |
| CPU | Supports Intel? Xeon? E-2100/E-2200 Series Processors |
| 插槽 | Single Socket LGA 1151 |
| 电源设计 | Max. 95W |
| 芯片组 | Intel? C246 |
| 系统内存 | |
| 容量 | 4 DIMM slots |
| 类型 | Dual Channel memory technology DDR4 288-pin ECC/non-ECC UDIMM |
| 每个DIMM支持的 DIMM 尺寸 | 32GB |
| Max. DIMM Frequency | ECC/Non-ECC UDIMM: 2666/2400/2133 MHz |
| 电压 | 1.2V |
| 扩展插槽 | |
| PCIe x 16 | - SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied - SLOT4: PCIe x16 (PCIe3.0 x8) |
| PCIe x 8 | - SLOT2: PCIe x8 (PCIe3.0 x4)* *M2_2 shared with SLOT2 |
| PCIe x 1 | - SLOT7: PCIe3.0 x1 |
| PCI | - SLOT1: PCI |
| 存储 | |
| SATA 控制器 | - Intel? C246 : 8 x SATA3 6.0 Gb/s, support RAID 0, 1, 5, 10 |
| 额外存储控制器 | - Marvell SE9172: 4 x SATA3 6.0 Gb/s, support RAID 0, 1, 5, 10 |
| M.2 | - M2_1: (2230/2242/2260/2280/22110, Supports PCIE3.0(X4)/SATA3) - M2_2: (2230/2242/2260/2280/22110, Supports PCIE3.0(X4)) - M2_3 (BTO) : (2230, WiFi/ BT antena) |
| 以太网 | |
| 接口 | - 1000 /100 /10 Mbps |
| Additional GbE Controller | - 2 x RJ45 GLAN by Intel? i210 + Intel? i219LM - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE |
| 功能 | - Watch Dog - NMI |
| 显示 | |
| 控制器 | - CPU pGFX |
| 音頻 | |
| 音频编解码器 | - Realtek ALC892 |
| 后侧面板 I/O 接口 | |
| VGA 接口 | - 1 x D-Sub, 1 HDMI, 1 DisplayPort |
| USB 3.2 接口 | - 3 x TypeA + 1 x TypeC ports |
| 网络接口 | - RJ45: 2 x GLAN(by Intel? i210 + Intel? i219LM) - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| 串口 | - 1 |
| 音頻 | - 1 (5+1 jack) |
| 内置接口 | |
| 电源接口 | - 1 (24-pin) + 1 (8-pin) |
| 辅助面板接头 | - 1 (includes chassis intrusion, front LAN LED) |
| TPM 接口 | - 1 |
| 热量感应接口 | - 1 |
| 蜂鸣器 | - 1 |
| 风扇接口 | - 6x Fan |
| USB 3.2 (Gen1) 连接头 | - 1 (support 2 x USB 3.0 ports) |
| USB 2.0 连接头 | - 3 (supports 6 x USB 2.0 ports) |
| NMI Header | - 1 |
| System Panel | - 1 (RST, PWRBTN, HDDLED, PWRLED) |
| 扬声器 | - 1 (4pin) |
| SGPIO Header | - 2 |
| Clear CMOS | - 1 (short pad) |
| Others | - 1 Front Audio Panel |
| 板载 LED | |
| Port 80 LED | - 1 |
| 系统 BIOS | |
| BIOS 类型 | - 256 Mb AMI UEFI Legal BIOS |
| BIOS 功能 | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash |
| 硬件监控 | |
| 温度 | - CPU/PCH Temperature Sensing - MB/Card side/TR1 Temperature Sensing |
| 风扇 | - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - Fan Multi-Speed Control |
| 电压 | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCM, VCCIO, VCCSA, VCCST_SFR, V1.0M, 3VSB |
| 支持操作系统 | |
| 操作系统 | Microsoft? Windows? - Windows? 10 (64bit) Linux - RedHat Enterprise Linux Server 8.1 (64 bit)/ 6.9 (64 bit) / 7.4 (64 bit) - SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP3 (64 bit) - Ubuntu 16.04 (64 bit)/ 18.04 (64 bit) Virtual - VMWare? ESXi 6.5 u1 *Please refer to our website for the latest OS support list. * Ubuntu 16.04(64bit)/ 18.04 (64 bit) Intel? Raid mode only support UEFI BOOT * Marvell RAID mode not support Linux OS install * In RedHat Enterprise Linux Server 7.4 (64 bit), please disable the Marvell 9172 controller in the BIOS. |
| 使用环境 | |
| 温度 | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°
