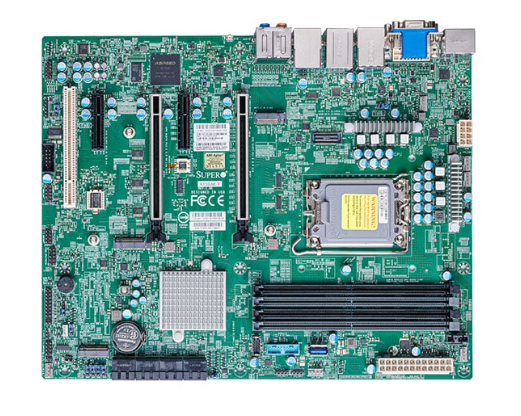

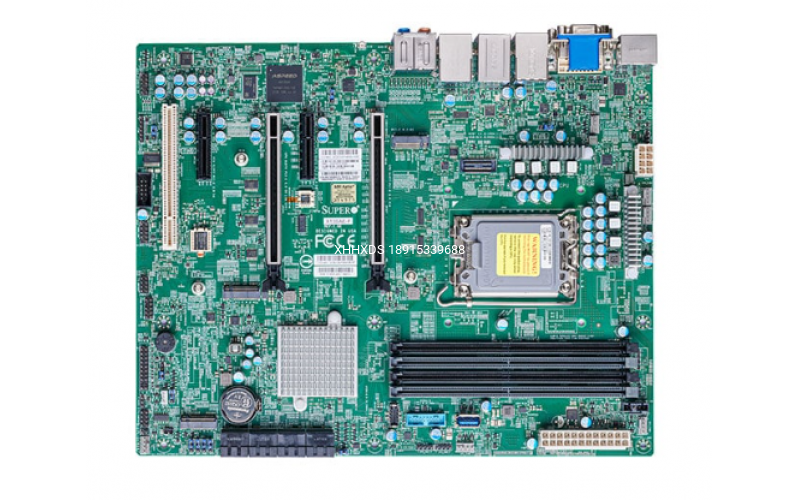

Key Features12th Generation Intel? Core? i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDPIntel? W680Single LAN with Intel? Ethernet i225LMSingle LAN with Intel? PHY I219LM LAN controllerfor AMT/vProSingle LAN with RTL8211Dedicated LAN for IPMI2 PCI-E 5.0
| Product SKUs | |
| MBD-X13SAE-F | X13SAE-F |
| Physical Stats | |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| Processor | |
| CPU | 12th Generation Intel? Core? i3/i5/i7/i9 Processors |
| Single Socket LGA-1700 (Socket H5) supported, CPU TDP supports Up to 125W TDP | |
| Core | Up to 16(8+8) cores |
| System Memory | |
| Memory Capacity | 4 DIMM slots |
| 128GB ECC/non-ECC UDIMM, DDR5-4400MHz | |
| Memory Type | 128GB |
| DIMM Sizes | 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | Intel? W680 |
| SATA | Intel? W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2600 BMC |
| Audio | ALC 888S HD Audio |
| Network Controllers | Single LAN with Intel? PHY I219LM LAN controller, for AMT/vPro |
| Single LAN with Intel? Ethernet i225LM | |
| Single LAN with Realtek RTL8211F PHY (dedicated IPMI), Dedicated LAN for IPMI | |
| Input / Output | |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 1 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 2.5 Gigabit Ethernet LAN port | |
| USB | 4 USB 2 port(s) (2 via header; 2 rear) |
| 4 USB 3.2 Gen2 port(s) (4 rear type A) | |
| 3 USB 3.2 Gen1 port(s) (2 via header; 1 Vertical) | |
| 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header) | |
| Video Output | 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.1 port(s) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header |
| Expansion Slots | |
| PCI-E | 2 PCI-E 3.0 x4, |
| 2 PCI-E 5.0 x16 slots (16/NA or 8/8) | |
| 1 - 5V PCI 32bit | |
| M.2 | M.2 Interface: 3 PCI-E 4.0 x4, RAID 0, 1, 5 |
| Form Factor: 2280 | |
| Key: M-Key | |
| System BIOS | |
| BIOS Type | 256MB SPI Flash with AMI BIOS |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) | |
| BIOS rescue hot keys | |
| Riser card auto-detection support | |
| SMBIOS 3.0 or later | |
| Management | |
| Software | SuperDoctor? 5, SUM, SSM, AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
| System Management Software | SuperDoctor 5 |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN |
| PC Health Monitoring | |
| Voltage | VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH |
| LED | Power LED |
| Catastrophic Error LED | |
| FAN | 5x 4-pin fan headers (up to 5 fans) |
| Fan speed control | |
| Overheat LED indication | |
| Other Features | CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector |
| Operating Environment | |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
